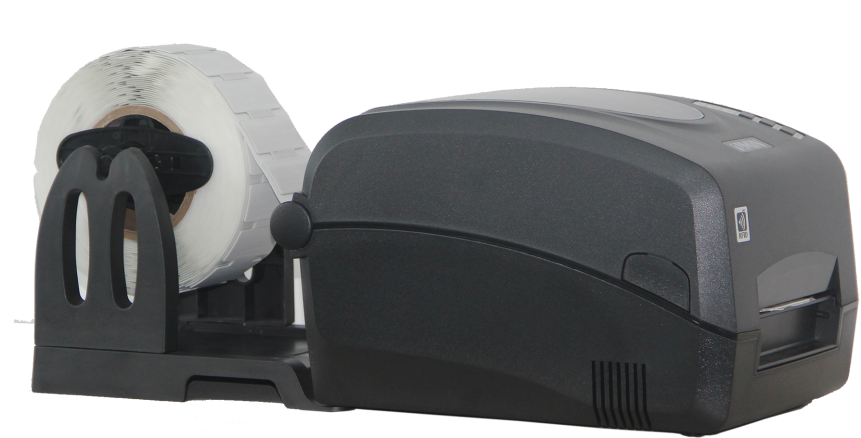

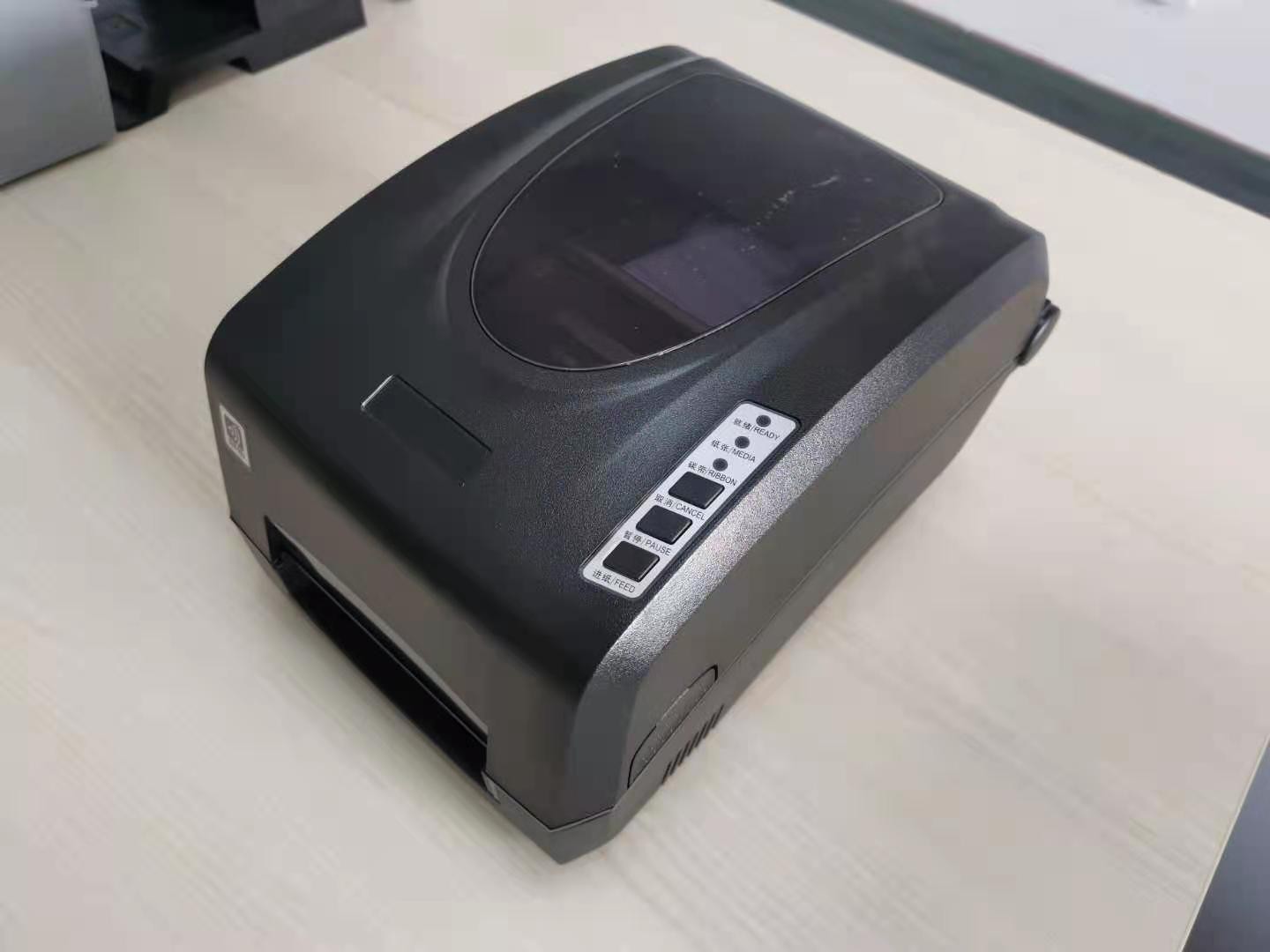

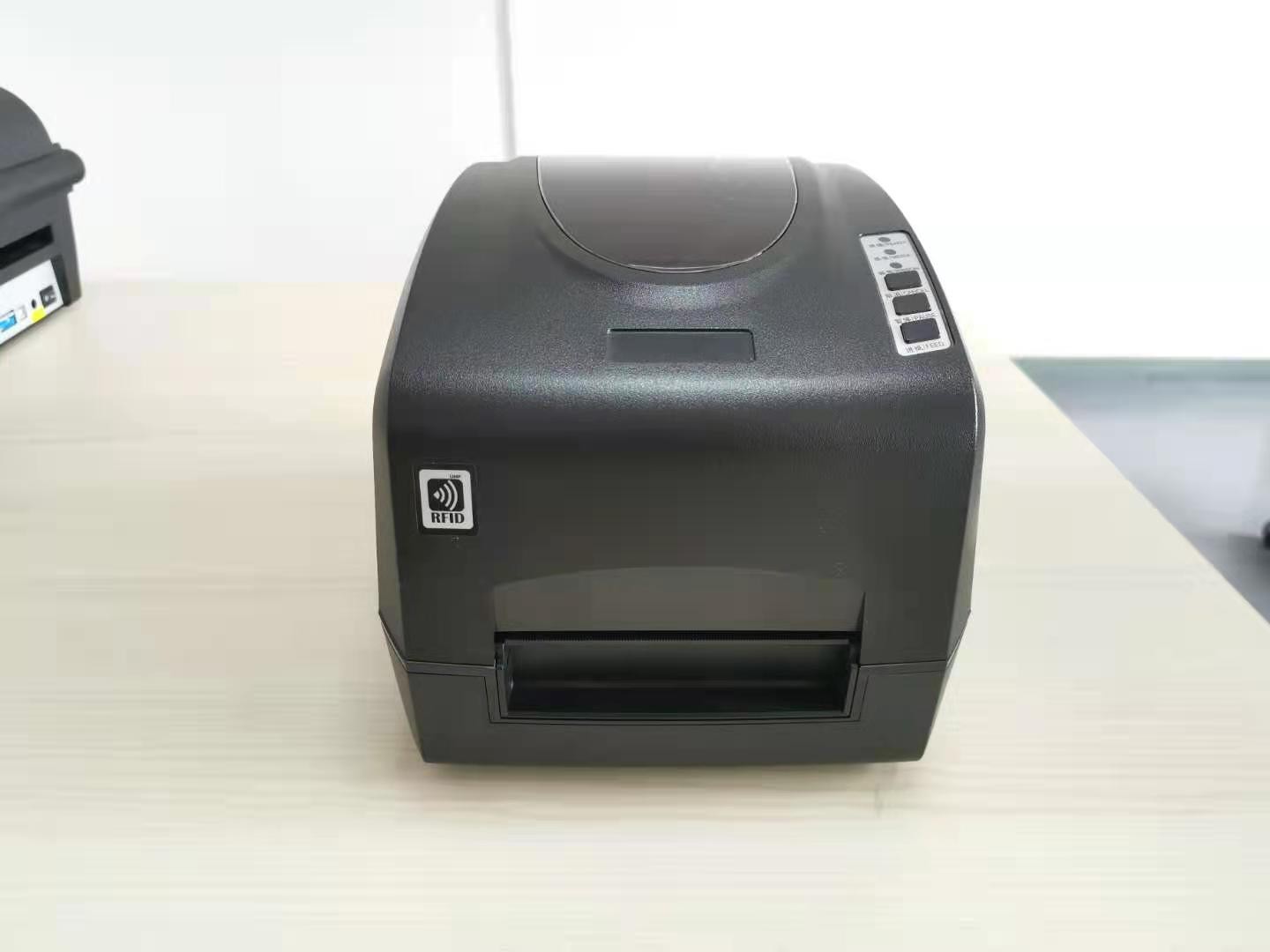

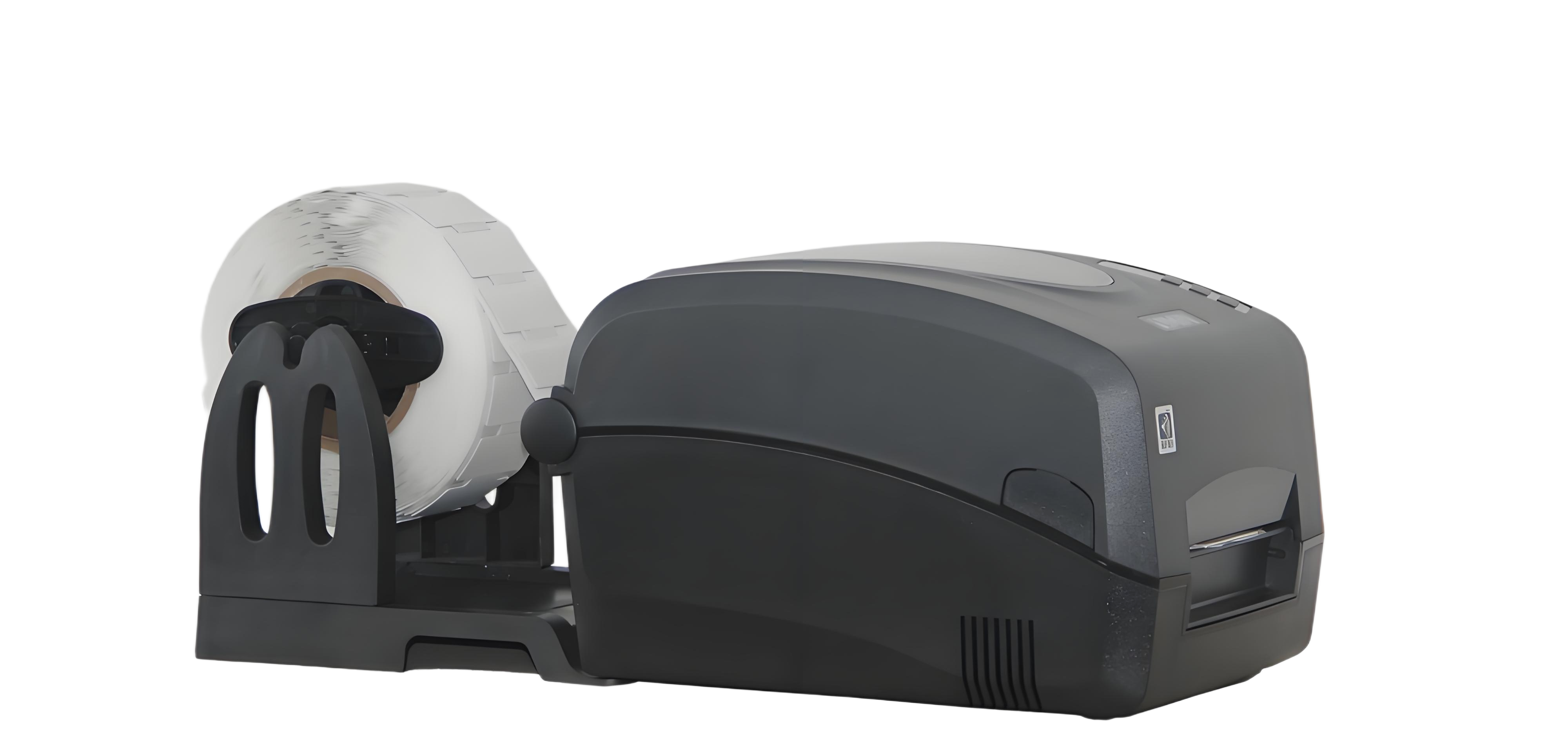

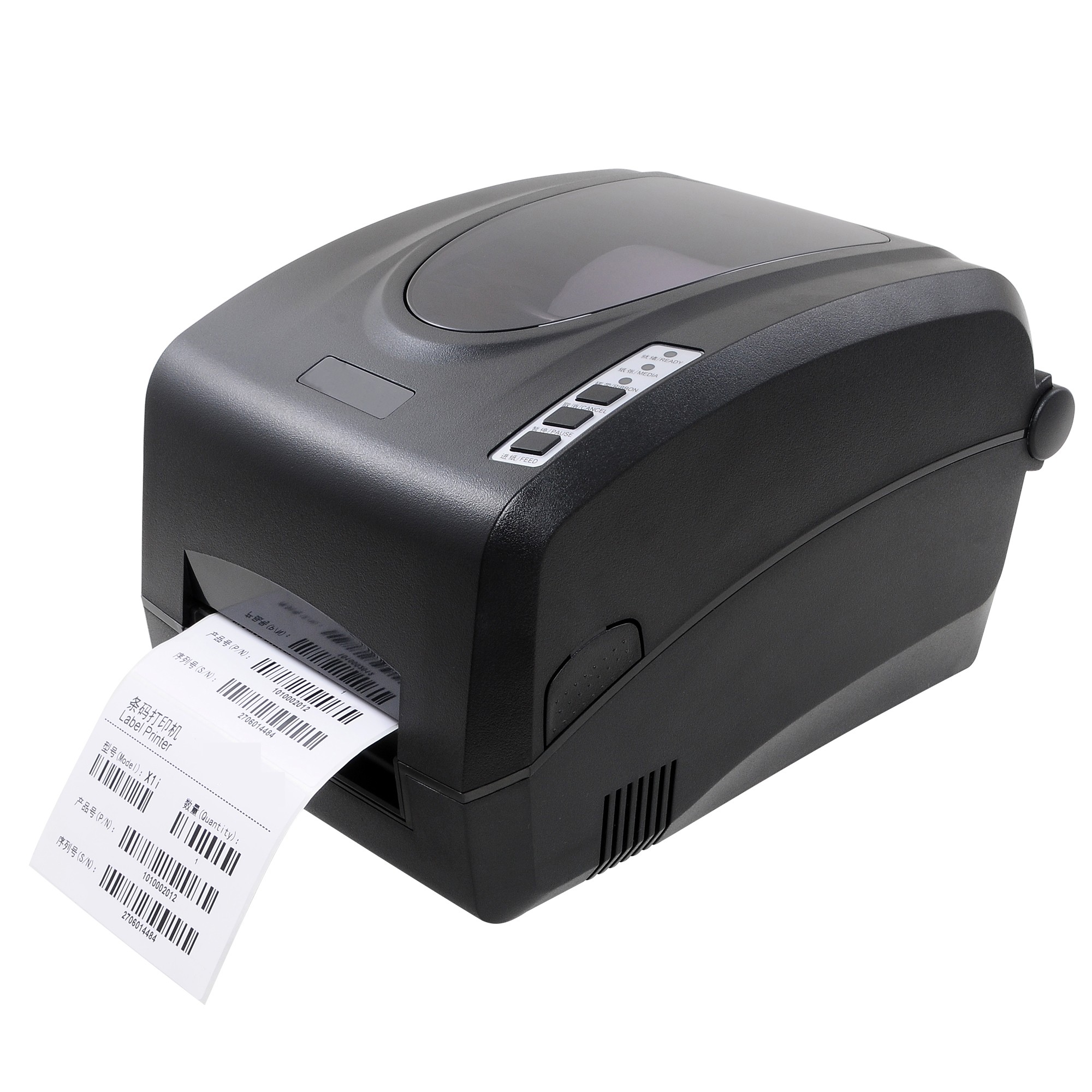

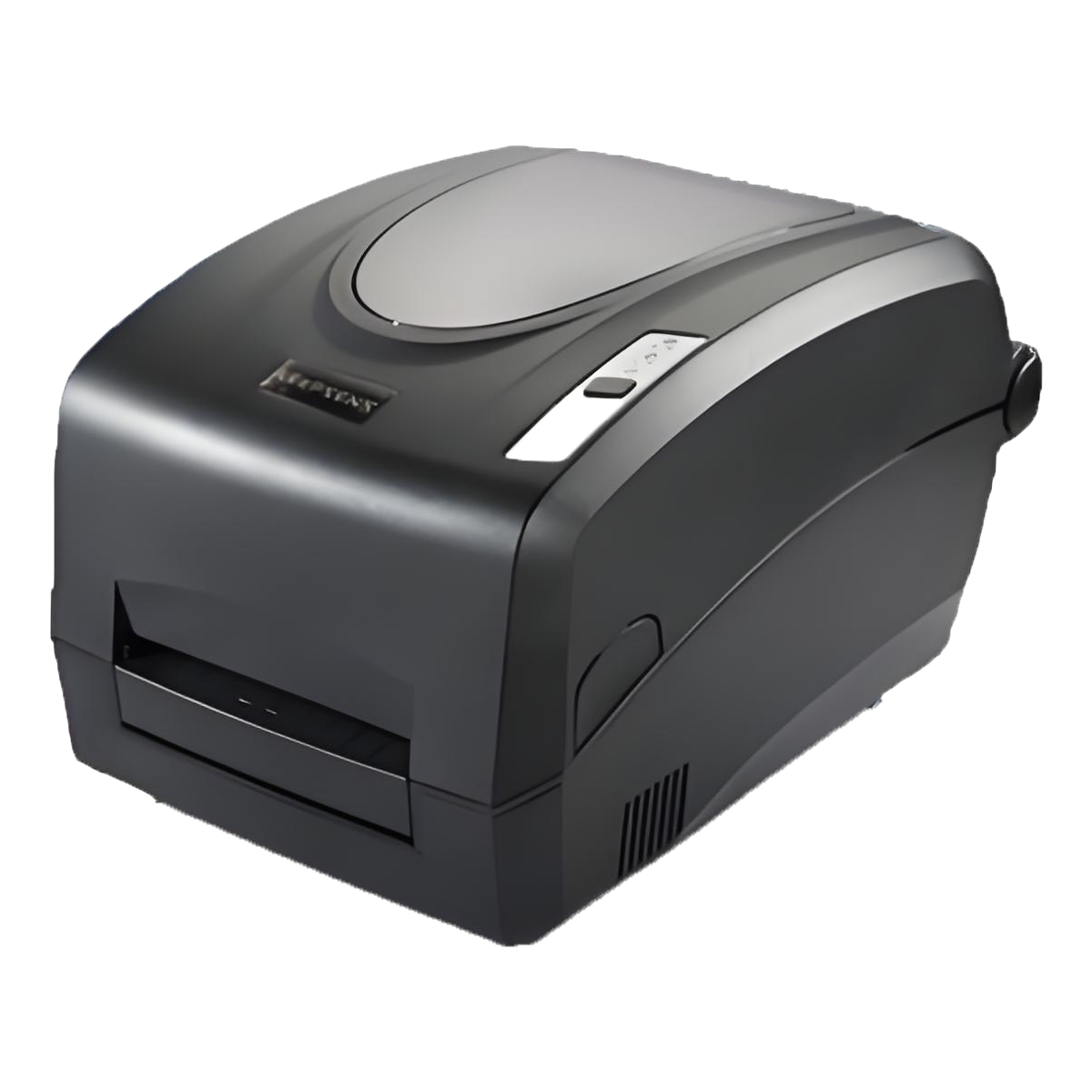

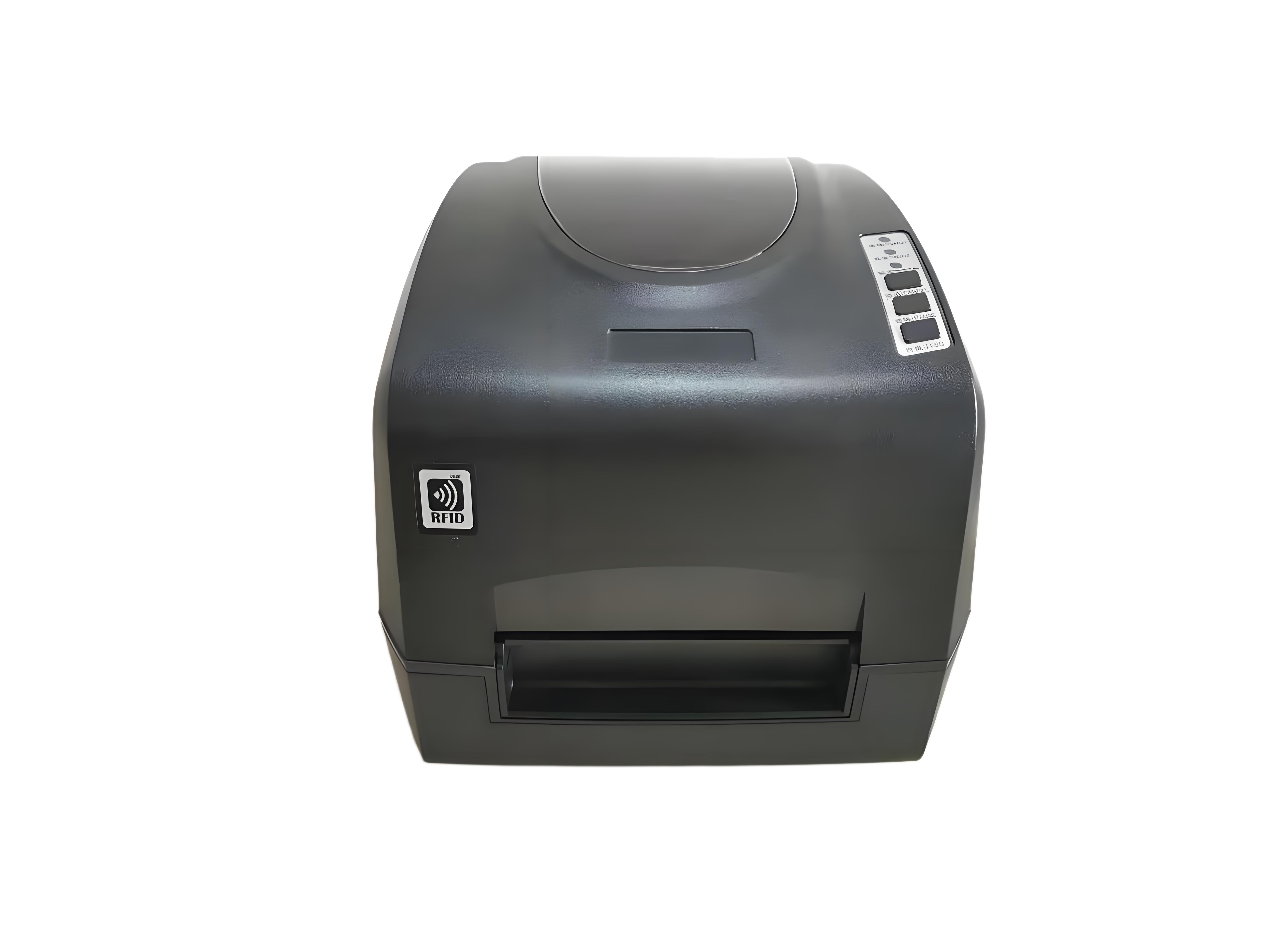

UHF F1id RFID PRINTER

●Direct thermal & Thermal transfer
●300DPI Resolution
●6 IPS(152.4mm/s) Maximum print speed
●Adjustable reflective media sensor
●Support:flexible anti-metal RFID labels with a thickness of less than 1.5mm and ordinary RFID labels, also supports to print normal labels.
●Support: software development kit(SDK),also can do OEM/ODM service.

EMAIL

Model

F1iD

Printing method

Direct thermal & Thermal transfer

Resolution

300 DPI(11.8dots/mm)

Maximum print speed

6 IPS(152.4mm/s)

Maximum print width

4.15″ (105.6mm)

Maximum print length

78.7″(2000mm)

Memory

8 MB Flash ROM, 16 MB SDRAM

Media

Roll-feed, die-cut, continuous, fan-fold, labels, tickets in plain paper or thermal paper
Width4.6″(118mm) max.,0.8″(20mm)min.
Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min.
Thickness: 0.061.5mm(0.002″0.06″), including liner, support flexible on-metal labels.

Ribbon

Wax, Wax/Resin, Resin
Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core
Max width: 110mm; Max length: 300M

Media sensor

Adjustable reflective & Transmissive

RFID function

Integrated high performance RFID reader/encoder supports labels compatible with UHF EPC Gen 2/ISO 18000-6C

Bar Code Types

1D Barcode : Code 39Code 93Code 128CodabarEAN-8/13/128Interleave
2 of 5UCC-128UPC A/E 2 and 5 add-on, etc.
2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc.

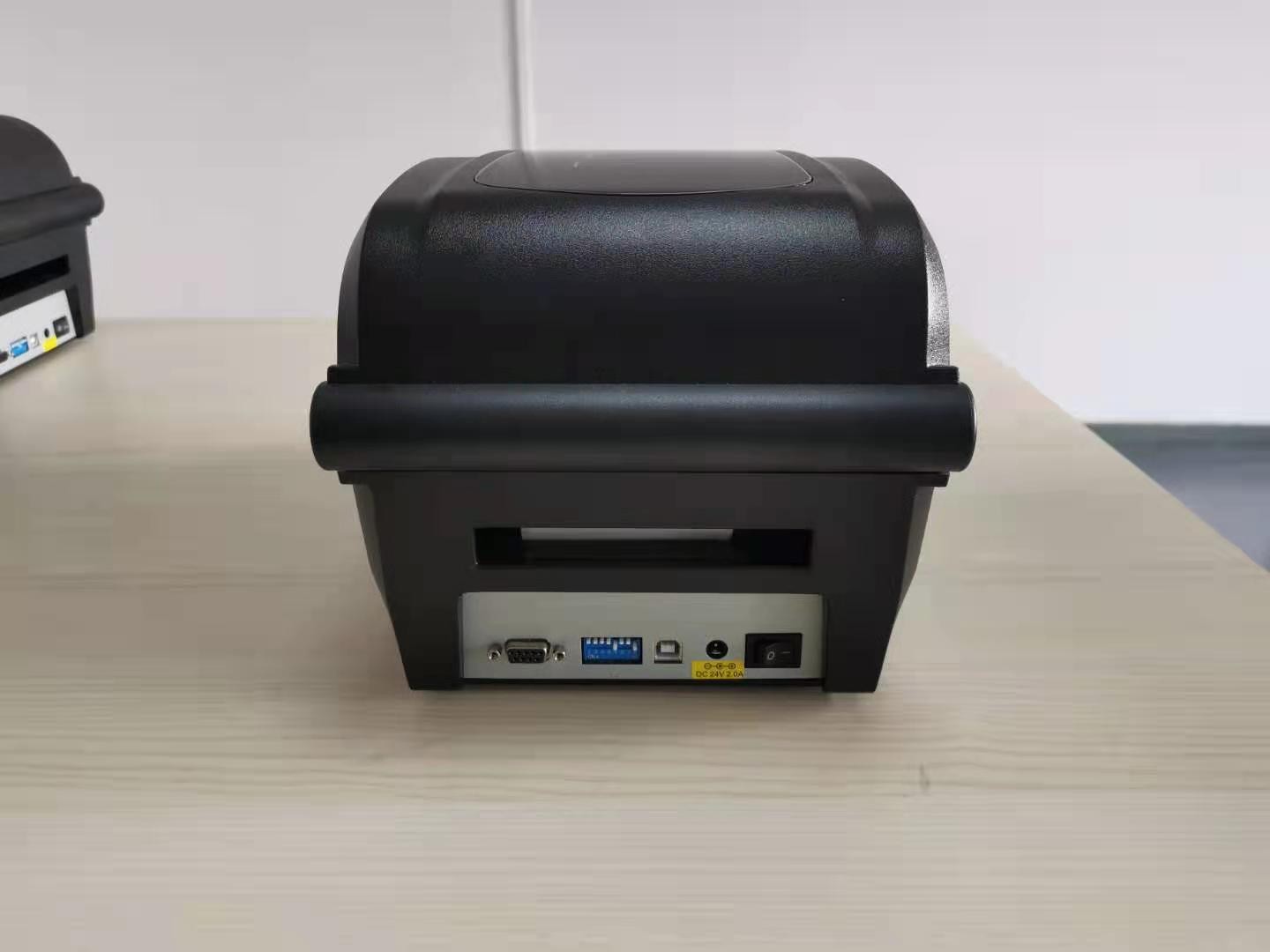

Interfaces

RS-232, USB, LAN

Power rating

24 VDC, 2.0 A

Weight

2.85KGS

Dimensions

W208 x D310 x H195 mm

Operation
environment

Temperature: 32° F ~ +104° F (0° C ~ 40° C)
Relative humidity: 5% - 85% non condensing

Storage environment

Temperature: -40° F ~ +140° F (-40° C ~ 60° C)
Relative humidity: 5% - 85% non condensing

Options

External label bracket, Peeler, Bluetooth module(BLE)
